ZBT WE826-T2





Bundle Situation (Important!!!)

NO 4G Modem no sim : it has SIM card slot but not yet a 4g router, but can NOT support SIM card insertion and use, you should insert your 4G modem first, then you can use the sim card.

Description of frequency band and regions of use corresponding

(Applicable to Europe, Africa, Asia, all countries and regions, such as Russia, Israel, South Korea, Spain, Brazil, Ukraine, France, Italy, Netherlands, France, Belgium, Portugal, UK, Saudi Arabia, Nigeria, Switzerland, Kazakhstan, Poland, Ghana, etc.)

4G EU version ： EC25-E modem

4G: LTE: B1/B3/B5/B7/B8/B20/ B38/B40/B41

3G: WCDMA: B1/B5/B8

2G: GSM: B3/B8

4G EU Version 2 ( CAT 6 EP06-E Modem )

4G: LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32

4G: LTE-TDD: B38/B40/B41

2×CA: B1+B1/B5/B8/B20/B28;

B3+B3/B5/B7/B8/B20/B28;

B7+B5/B7/B8/B20/B28;

B20+B32 ; B38+B38; B40+B40; B41+B41

3G: WCDMA: B1/B3/B5/B8

4G EU Version 3 (NL668-EAU Modem )

4G: FDD: B1/3/5/7/8/20 /B28

4G: TDD: B38/40/41

3G: WCDMA: B1/5/8

2G: GSM: 850/900/1800MHz

4G AU version 1 EC25-AU Modem

4G: LTE: B1/B3/B4/B5/B7/B8/B28/ B40

3G: WCDMA: B1/B2/B5/B8

2G: GSM: B2/B3/B5/B8



(Applicable to most countries in Americas, such as Chile, the United States, Canada, Peru, Mexico, Colombia, Dominia , etc.)

4G USA version 1 EC25-AFFA Modem (For America):

LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71

WCDMA: B2/B4/B5

4G USA version 2 CAT6 EP06-A Modem (For America):

4G LTE-FDD: B2/B4/B5/B7/B12/B13/B25/B26/

B29 /B30/B66

2×CA: B2+B2/B5/B12/B13/B29

B4+B4/B5/B12/B13/B29

B7+B5/B7/B12/B26;

B25+B5/B12/B25/B26

B30+B5/B12/B29

B66+B5/B12/B13/B29 /B66

WCDMA: B2/B4/B5







Use tips:

1. Which Version will be suitable for use in my country?

4g EU Version 1/2/3 (4G AU) is suitable for countries in Europe and Africa, Asia, Brazil and Australia

4G USA Version 1/2 is suitable for countries in America.

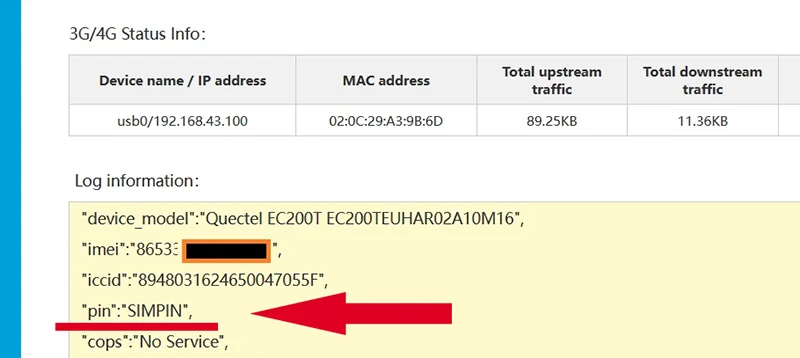

2. Cannot recognize my SIM card?

You can insert SIM card into the router for first, then turn on the power. If still not recognized the SIM card,please install another SIM card from another SIM card operator.

3. The device cannot connect to the Internet normally?

You need to disable the PIN code and modify the APN. (the info can consult SIM operator)

You can insert the card into the phone to unlock the PIN.

4. Signal is unstable?

You can also manage the settings page, lock 4G or 3G network, can effectively improve the stability of the network.

5. If your settings are correct and the device still cannot connect to the network, please consider whether it is caused by the following problems:

① Account got suspended for too much data usage.

② Is the SIM card an IoT card?

③ the sim card have limited service ,not work with router or hotspot .

④ not support roaming service.

⑤ some place did not cover the network Frequency band.

Note:

If you don’t know which version that you need to choose, here are some countries’ version for your reference.

If your country is not mentioned and you don’t know which version need to choose, please contact me and we will help you.





Packing List:

4G LTE WiFi router x 1

12V power adaptor x 1

Manual book x 1

gift box 1



FQA:

1. Can i attach my own 4G antennas if i buy 4G version?

Yes, It is RP-SMA connector. If you buy 4G versioin, it will come with 2 x 2.4G wifi antennas, 2 x 4G antennas, so you can attach your own 4G antennas.

2. Can i use it to my car?

Yes, it can be used as vehicles router, you only need to use a conventor to change the car voltage to 12V.

3. Can i connect to my IP camera by 3G 4G?

Yes, it supports.

4. How to set up the router?

Please tell me your email and i will send you the openwrt user manual, it is very easy to set up.

5. What is neutral version?

That means the router only has sim card slot, but isn’t installed 4G module, so it doesn’t work with sim card. and it will come with 2 wifi antennas. If you need it work with sim card, please select 4G version!

WE826-T2 LTE router with sim card slot also can be used as vehicles router ,you only need to use a conventor to change the car voltage to 12V.

we can also send you a vehicle Cigarette Lighter, following is the photo for it. If you need it, please tell me in advance.



Firmware information

Feeback from customer for this product
